Steel Picket Fence

Steel picket fence is also known as tubular fencing can be made from either steel, aluminum or wrought iron. Tubular steel offers a simple, affordable and stylish option for you. All tubular fencing can be custom designed to suit your requirements.

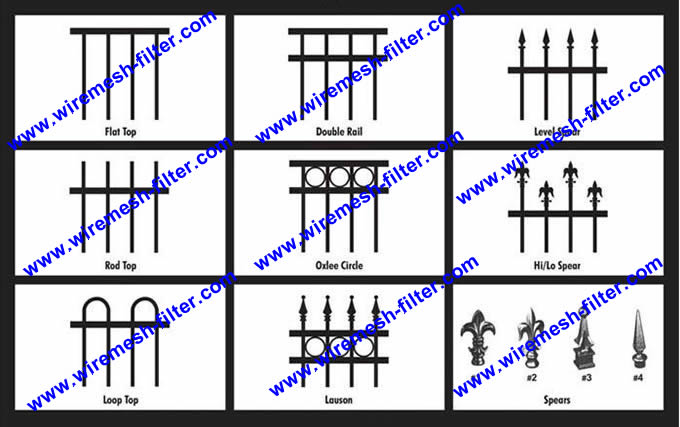

Panels
Fence panels are manufactured of the highest-strength steel pickets and rails, and are available in a wide range of sizes and styles.

Posts
Panels are attached with high-strength steel brackets to galvanized and powder-coated square tubular steel posts.

Gates
Choose from the widest available range of gate offerings, including opening configurations: Swing, Slide or Cantilever.

Coating
Hot dipped galvanized/painted/PVC coated

Colors
RAL standard colors are available.

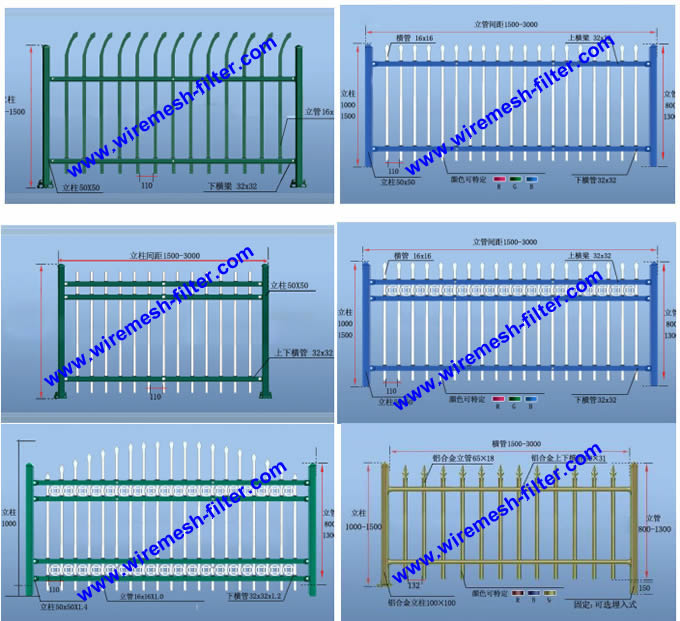

Model Type

TFL

TFS

TFH

Panel Height(mm)

1100-2200

1100-2200

1100-2200

Panel Width (mm)

2500-3000

2950-3200

2950-3200

Post Size (mm)

50 x 50

60 x 60

75 x 75

Vertical Picket Spacing (mm)

110

110

110

Horizontal Rail Size (mm)

32x32

40x40

45x45

Vertical Picket Size(mm)

16x16, 16x19

19x19, 16x19

25x25, 19x25
