Hinged Knot Fence

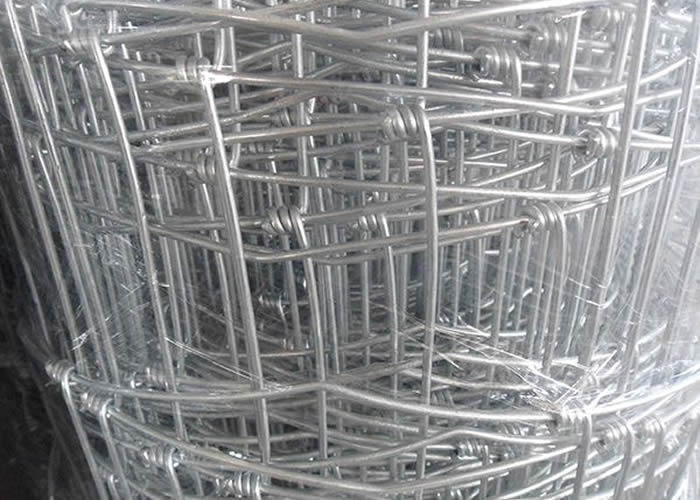

Hinged knot fence has four wrap hinge joints, in which two vertical stay wires wrap together to form hinged joint. The knot acts as a hinge that gives under pressure, then springs back into shape.
Hinged knot fence has four wrap hinge joints, in which two vertical stay wires wrap together to form hinged joint. The knot acts as a hinge that gives under pressure, then springs back into shape. This structure provides easy installation because the hinge "gives" while retaining full height for continuing protection and good looks. Vertical wires are individually cut and wrapped for maximum strength and flexiblity.

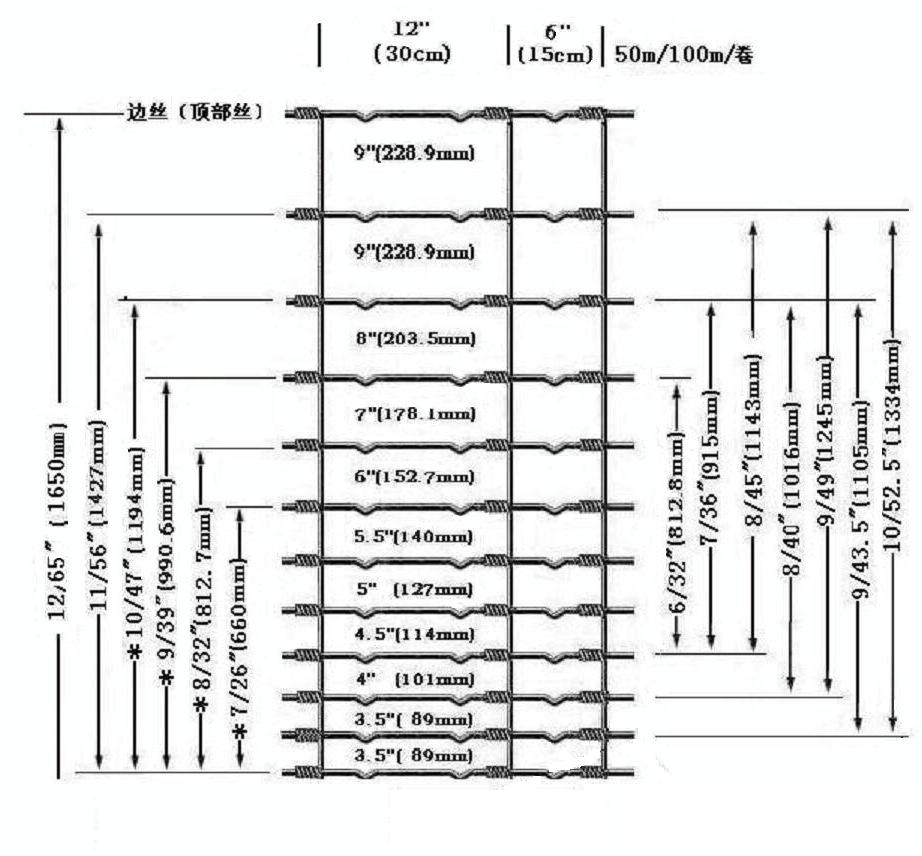

| Hinge joint fence | |||||
| Item | No. horizontal wire | Fence height | Stay opening | Inside wire gauge | Top & bottom wire gauge |
| HJF-1 | 7 | 26" | 6" or 12" | 11 | 9 |
| HJF-2 | 7 | 26" | 6" or 12" | 12.5 | 10 |
| HJF-3 | 8 | 32" | 6" or 12" | 11 | 9 |
| HJF-4 | 8 | 32" | 6" or 12" | 12.5 | 10 |
| HJF-5 | 9 | 39" | 6" or 12" | 9 | 9 |
| HJF-6 | 9 | 39" | 6" or 12" | 11 | 9 |
| HJF-7 | 9 | 39" | 6" or 12" | 12.5 | 10 |
| HJF-8 | 10 | 47" | 6" or 12" | 9 | 9 |
| HJF-9 | 10 | 47" | 6" or 12" | 11 | 9 |
| HJF-10 | 10 | 47" | 6" or 12" | 12.5 | 10 |
| HJF-11 | 11 | 56" | 6" or 12" | 9 | 9 |
| HJF-12 | 11 | 56" | 6" or 12" | 11 | 9 |
| HJF-13 | 11 | 56" | 6" or 12" | 12.5 | 10 |
| HJF-14 | 6 | 32" | 6" or 12" | 11 | 9 |
| HJF-15 | 6 | 32" | 6" or 12" | 12.5 | 10 |
| HJF-16 | 7 | 36" | 6" or 12" | 11 | 9 |
| HJF-17 | 7 | 36" | 6" or 12" | 12.5 | 10 |
| HJF-18 | 8 | 45" | 6" or 12" | 9 | 9 |
| HJF-19 | 8 | 45" | 6" or 12" | 11 | 9 |
| HJF-20 | 8 | 45" | 6" or 12" | 12.5 | 10 |
| HJF-21 | 9 | 49" | 6" or 12" | 9 | 9 |
| HJF-22 | 9 | 49" | 6" or 12" | 11 | 9 |
| HJF-23 | 9 | 49" | 6" or 12" | 12.5 | 10 |
| HJF-24 | 9 | 43.5" | 6" or 12" | 9 | 9 |
| HJF-25 | 9 | 43.5" | 6" or 12" | 11 | 9 |
| HJF-26 | 9 | 43.5" | 6" or 12" | 12.5 | 10 |
| HJF-27 | 10 | 52.5" | 6" or 12" | 9 | 9 |
| HJF-28 | 10 | 52.5" | 6" or 12" | 11 | 9 |
| HJF-29 | 10 | 52.5" | 6" or 12" | 12.5 | 10 |
