TDD Shaker Screen

Shale Shaker Screen

TDD Shaker Screen

The model 300 series shale shaker utilizes 36 x 30 screens which are available in FLAT and PINNACLE type. Pretensioned wire cloth is tightly bonded on the supporting metal back, increase the screen conductance and ensure a longer screen life.

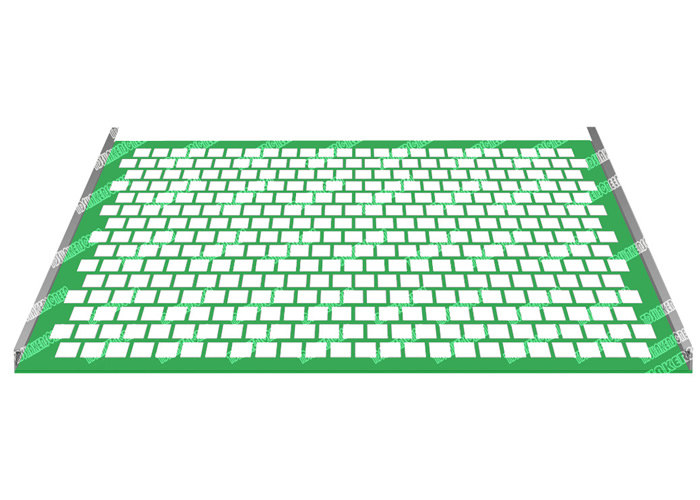

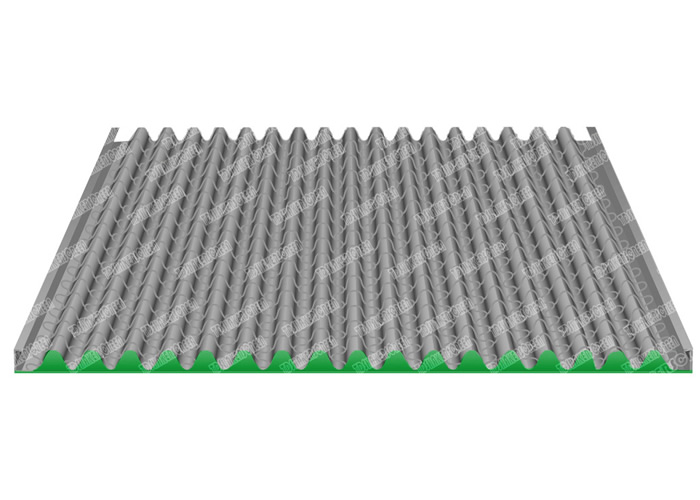

Model 300 Shale Shaker Screen

The model 300 series shale shaker utilizes 36 x 30 screens which are available in FLAT and PINNACLE type.

Pretensioned wire cloth is tightly bonded on the supporting metal back, increase the screen conductance and ensure a longer screen life. Metal hookstrip makes it easier and quicker to change the screen, save working time.

Shaker Model Screen Type API RP 13C Non Blanked Screen Area
Fluid300 Flat 4.26 sq.ft.
Fluid300 Pinnacle 6.24 sq.ft.

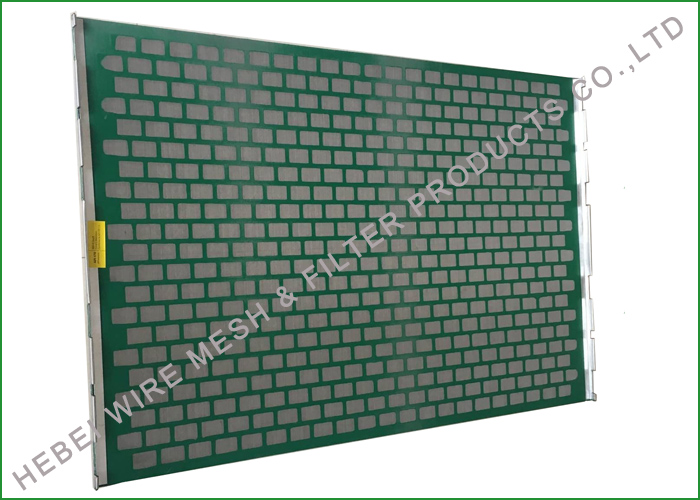

Model 2000 Shale Shaker Screen

FLC2000 Shaker screens are called 48×30 shaker screens. They can be used to replace screen for FLC2000 series shaker and mud cleaners. Furthermore, there are also other equipment adopted FLC2000 series shaker. Such as the gumbo removal cascade, and the conversion kits
The model 2000 series shale shaker utilizes 48 x 30 screens which are available in FLAT and PINNACLE type.

The main mesh size is API40-API325. and there are also different types divided according to cut point or non-blanked area. Such as DX, DF, HP series screen

Pretensioned wire cloth is tightly bonded on the supporting metal back, increase the screen conductance and ensure a longer screen life. Metal hookstrip makes it easier and quicker to change the screen, save working time.

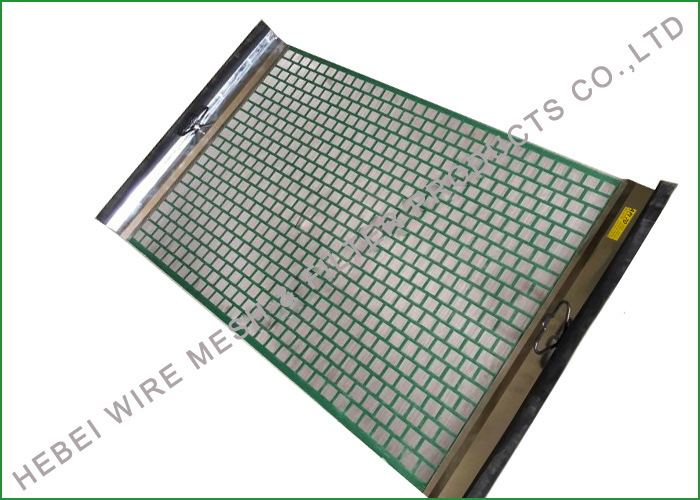

Mode 500 Shale Shaker Screen

Model 500 Series screens are available in FLAT and PINNACLE panels, can be fitted on all 500 series shale shaker. Innovative perforated metal panel can completely match the single side tensioning system, which reduces the screen replacement time.

The mesh sizes are mainly produced as API 40 to API 325. Presently, all these screen panels are utilized top quality super fine wire cloth for better conductance and higher filtration performance.

New technology is applied to the rubber strip bonding, with melt rubber particles extruded along the four sides of the screen back, the rubber strip is firmly bonded to the support plate.

Shaker Model Screen Type API RP 13C Non Blanked Screen Area
Fluid500 Flat 4.15 sq.ft.
Fluid500 Pinnacle 8.24 sq.ft.

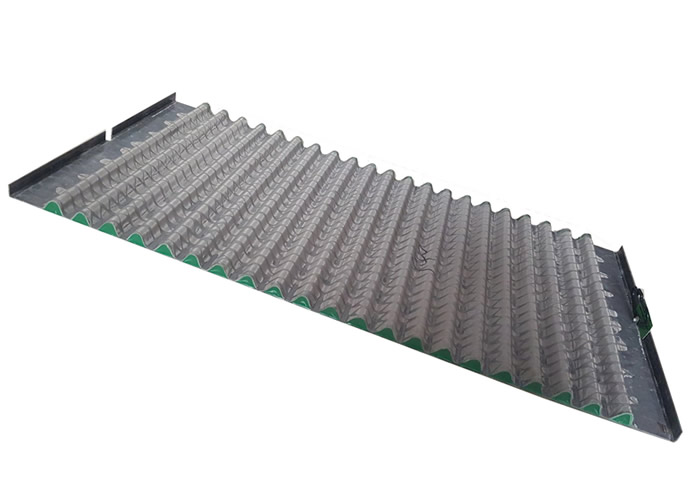

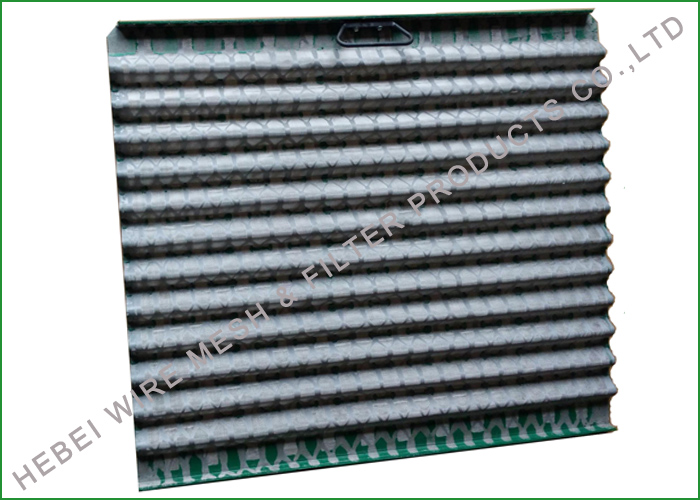

Mode DP600 & HP600 Shale Shaker Screen

The single-side screen compression system is available in either left or right side operation. The system reduces screen panel replacement time to less than 45 seconds per panel, permitting complete shaker screen changes in less than three minutes. The manually operated compression system drives retention pins that force the screen panel downward against the concave screen bed, producing positive and uniform screen-to-deck sealing. The screen compression system increases screen life, improves conveyance, and prevents solids from passing under screen panels.

DP600 & HP600 screens are available in PINNACLE panels, which are designed to suit the screen compression system, extend the screen life, maximize the screen conductance, ensure a better solid control performance.

Shaker Model Screen Type API RP 13C Non Blanked Screen Area
DP600 Pinnacle 4.20 sq.ft.
HP600 Pinnacle 5.80 sq.ft.
