Twin Wire Fence
Metal Fence
Twin Wire Fence

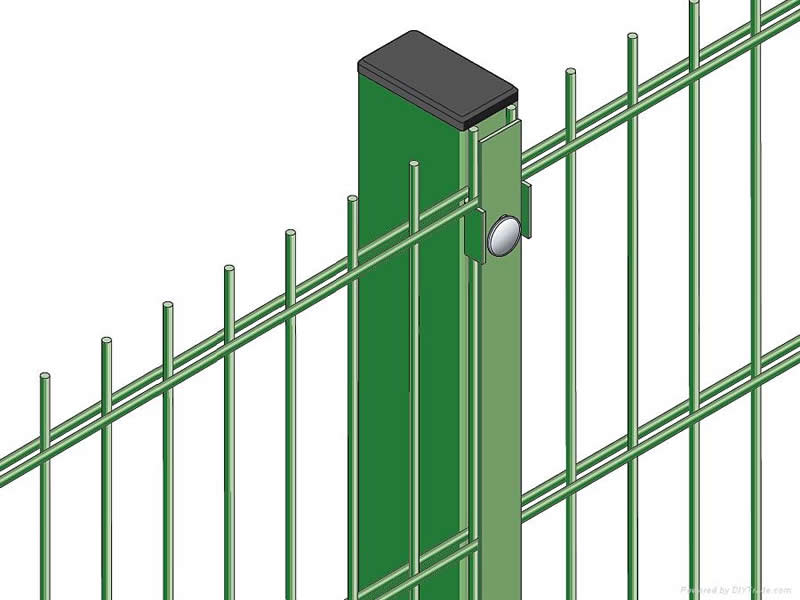

Twin wire mesh panel and post system is made with "twin" horizontal wires to provide an exceptionally rigid fence. Twin horizontal wires welded to 5mm verticals, often referred to as 656.
Twin wire mesh panel and post system is made with "twin" horizontal wires to provide an exceptionally rigid fence.
Twin horizontal wires welded to 5mm verticals, often referred to as 656. This system is also available in extra heavy duty 868 specification which has 8mm twin horizontal wires welded to 6mm verticals.

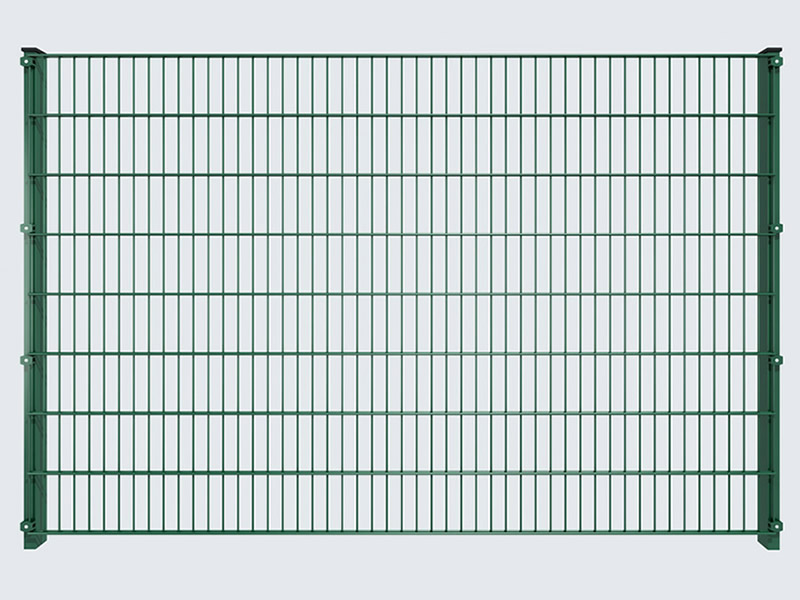

The Pro-twin system can be supplied in a range of heights including 1m, 2m and 2.4m and by combining panels a range of fence heights can be achieved up to at least 4m.

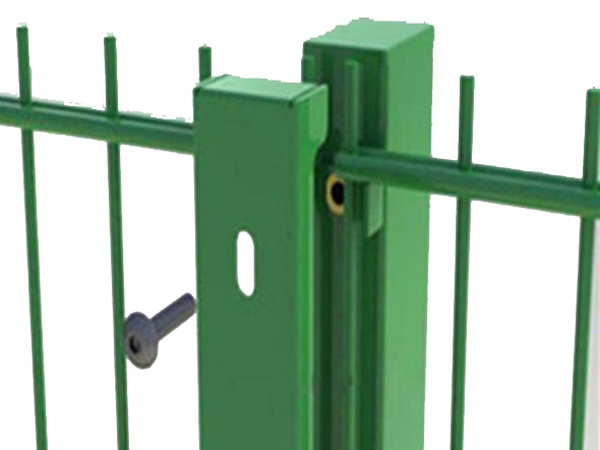

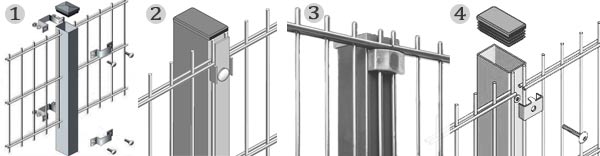

Posts are manufactured from different specifications of steel tube to suit the fence height. Fixings to attach the panels to the posts are made from steel backed by anti-rattle rubber pads and fixed to the posts by stainless steel tamper-proof security bolts.
| Panel Height x Width (mm) | Mesh size (mm) | Wire combination | Post Height (mm) | ||
| Wire dia mm | Wire dia mm | Wire dia mm | |||
| 630×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1100 |
| 830×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1300 |
| 1030×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1500 |
| 1230×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1700 |
| 1430×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 1900 |
| 1630×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2100 |
| 1830×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2400 |
| 2030×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2600 |
| 2230×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 2800 |
| 2430×2500 | 50×200 | 8×2+6 | 6×2+5 | 6×2+4 | 3000 |
