Welded Mesh Fence

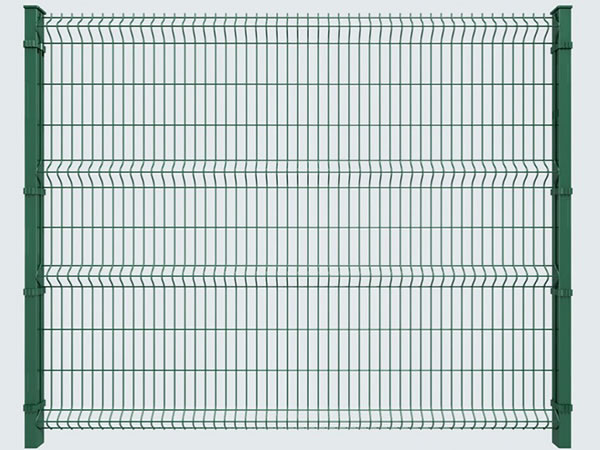

Weld mesh is the term given to the kind of barrier fencing that is manufactured in square or rectangular mesh from steel wire, welded at each intersection.
Curved Fence

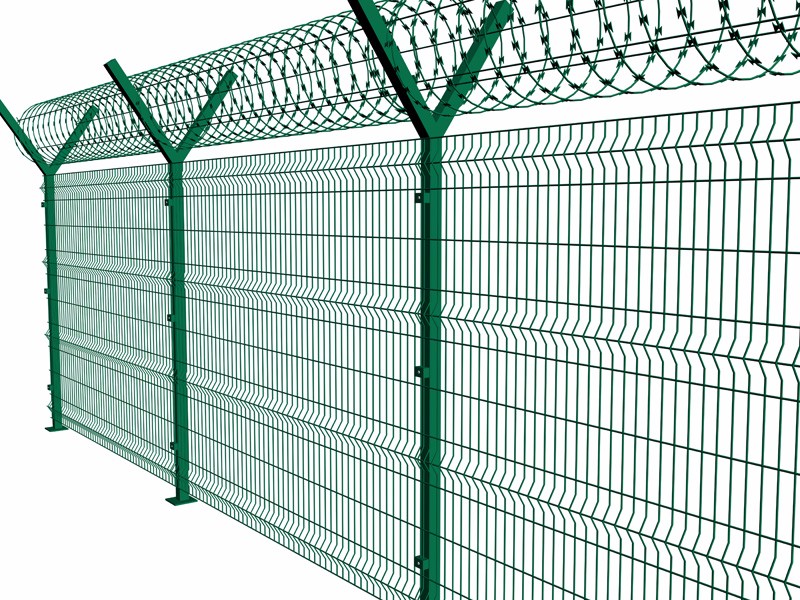

Weld mesh is the term given to the kind of barrier fencing that is manufactured in square or rectangular mesh from steel wire, welded at each intersection. It is usually affixed to steel uprights. Weld mesh fence has an advantage over chain link fencing wire of not bending so easily and not being so easily cut. This mesh is ideal for high security sites, schools and industrial parks.
| Panel Size | Wire dia. | Mesh size | Curves | Surface treatment | |
| Height | Length | ||||
| 1030 mm | 2000mm 2100mm 2200mm 2500mm | 3mm-6mm | 50x75mm 50x100mm 50x150mm 50x200mm 75x100mm 55x200mm 60x150mm | 2 | Electro GI+PVC coated Electro GI+PVC painting(Spraying) hot-dipped GI only Hot-dipped GI +PVC coated / painting |
| 1200 mm | 2 | ||||
| 1500 mm | 2 or 3 | ||||
| 1530 mm | 2 or 3 | ||||
| 1700 mm | 3 | ||||
| 1730 mm | 3 | ||||
| 1800 mm | 3 or 4 | ||||
| 1930 mm | 3 or 4 | ||||
| 2000 mm | 4 | ||||
| 2030 mm | 4 | ||||
| 2400 mm | 4 | ||||
| Post Style | Post Size |
| Square Post-A | 40*60*1.2mm |
| 40*60*1.5mm | |
| 40*60*2mm | |
| Square Post-B | 60*60*1.2mm |
| 60*60*1.5mm | |
| 60*60*2mm | |
| 60*60*2.5mm | |
| Peach post | 50*70mm |
| 70*100mm | |
| Round post | 38mm*1.5mm |
| 40*1.5mm | |
| 42*1.5mm | |
| 48*1.5mm | |
| Post Height | 2.0m, 2.2m, 2.4m as your request |
